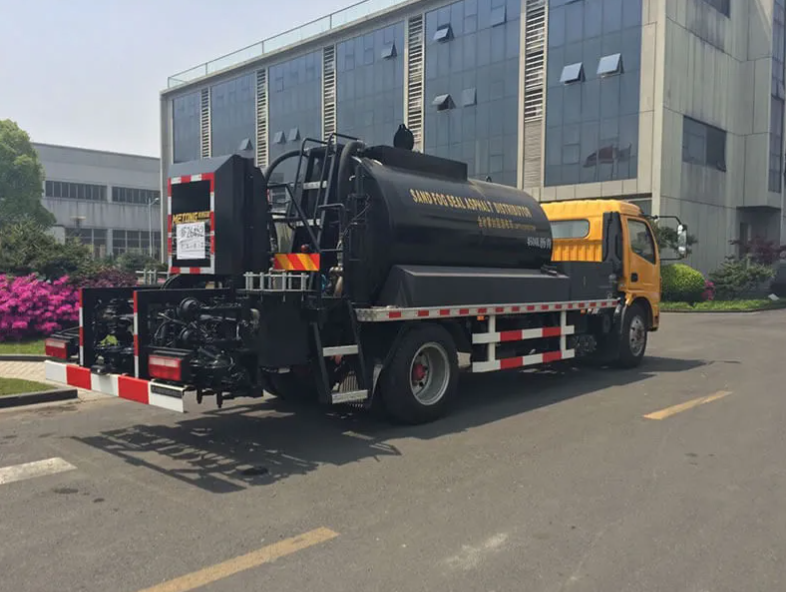

Asphalt Distributor LMT5255GLQW

Brand: METONG

Main features:

Rated Load, kg16100

Total Vehicle Weight, kg25000

Chassis ModelZZ1257N4647D1

Overall dimensions, mm10750*2500*3745

Characteristics

Main technical characteristics

Rated Load, kg 16100

Total Vehicle Weight, kg 25000

Chassis Model ZZ1257N4647D1

Approach Angle, ° 15

Departure Angle, ° 9.5

Top Speed, km/h 102

Working Speed, km/h 2.5 ~ 10.5

Overall dimensions

Length, mm 10750

Width, mm 2500

Height, mm 3745

Seating Capacity (including the driver) 2

Tank Capacity, m³/density 10

Engine

Engine Model D10.34-40

Fuel Type Diesel

Pattern 6-cylinder inline

Category 4-stroke

Engine Power, kw/r/min 249/1900

Gear and axle

Gear Flat top 6×4 rear drive

Tire Specification 12.00-20

Drive System Hydraulic drive

Discharge system

Discharge Standard GB17691-2005 China Ⅳ , GB3847-2005

Asphalt Spray Volume, L/m² 0.3~2.0

Max. Spray Width, m 3.5

Max. Pressure of Hydraulic System, MPa 16

Cleaning Way Water cleaning
