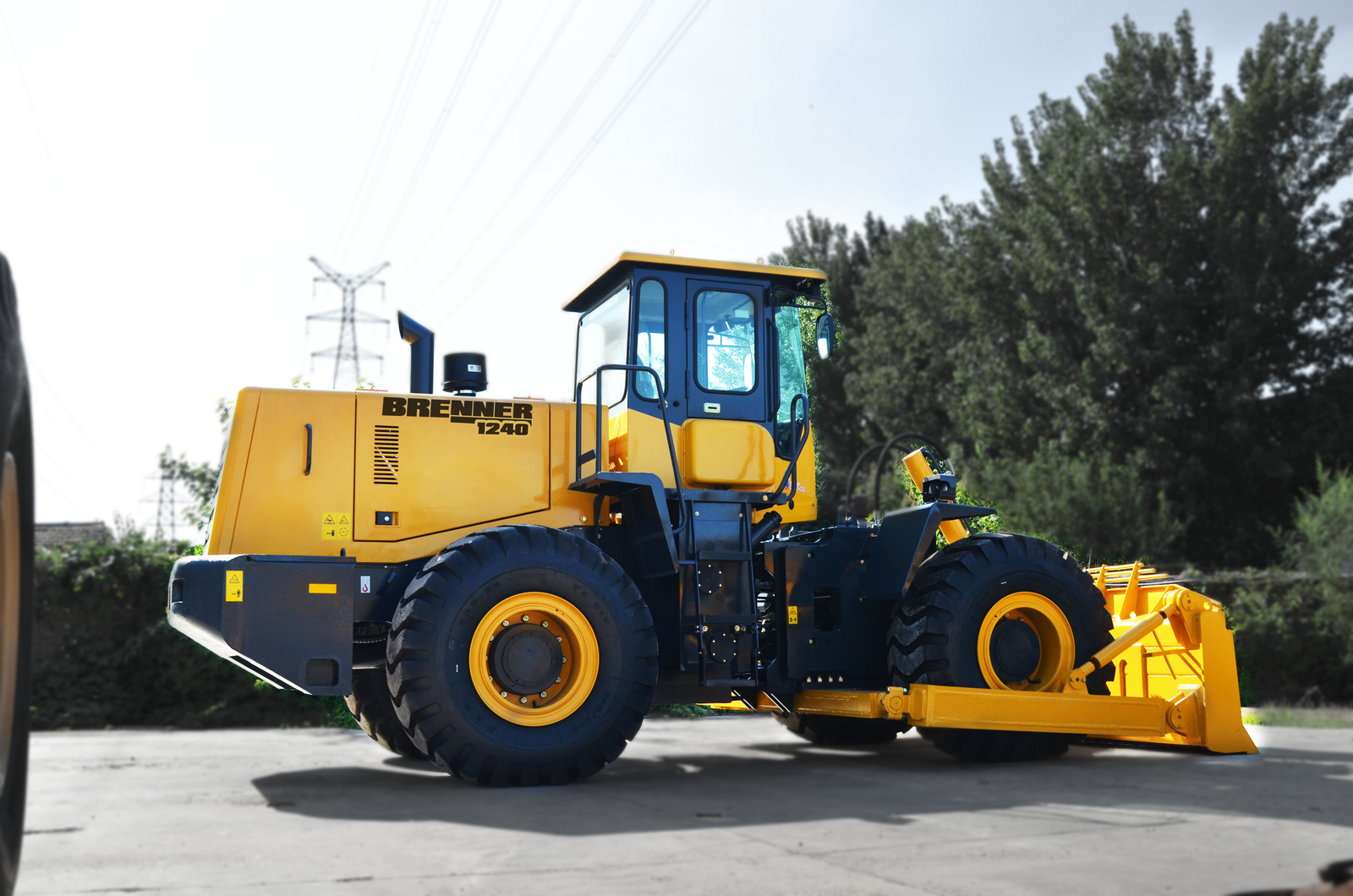

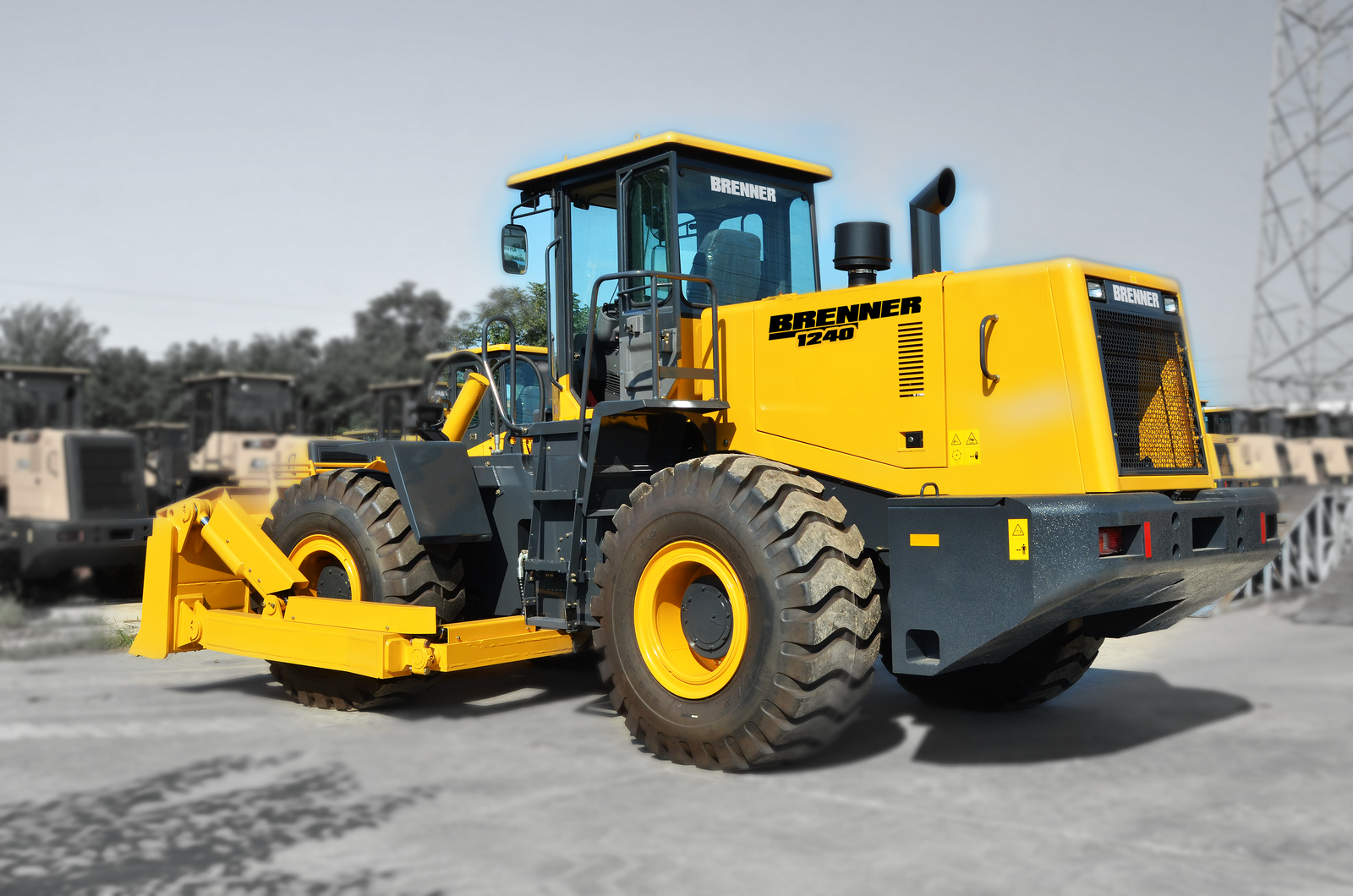

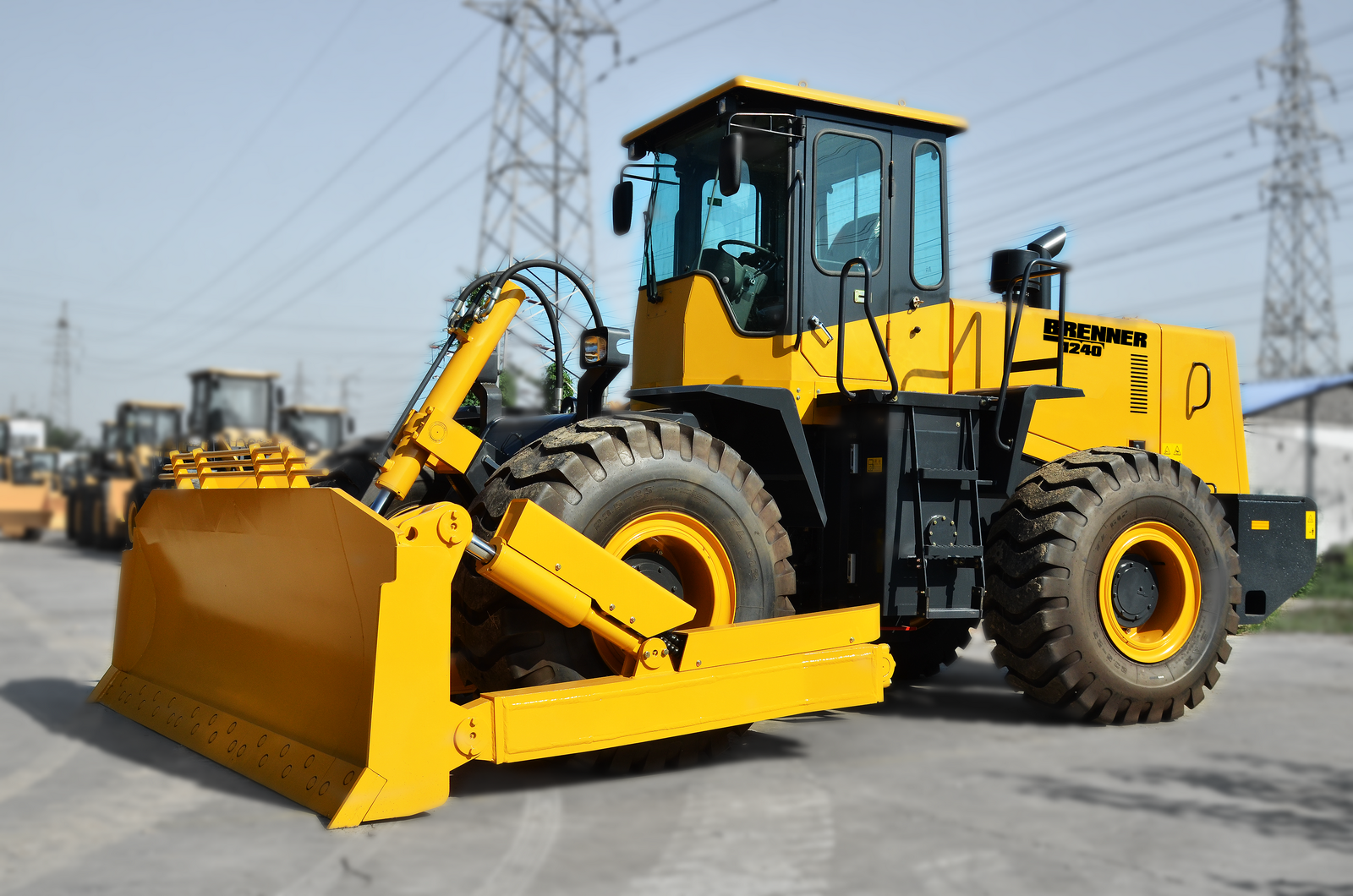

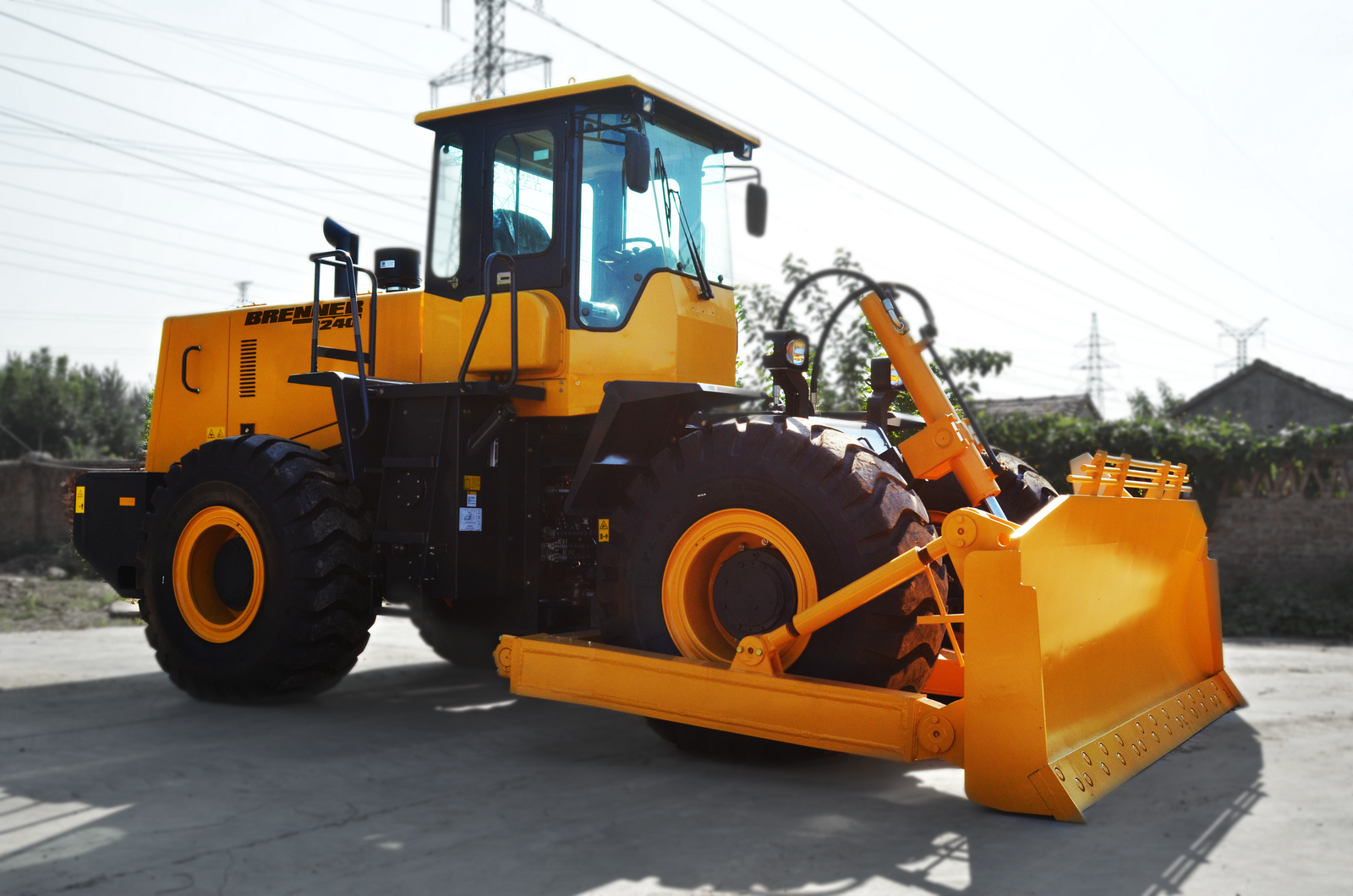

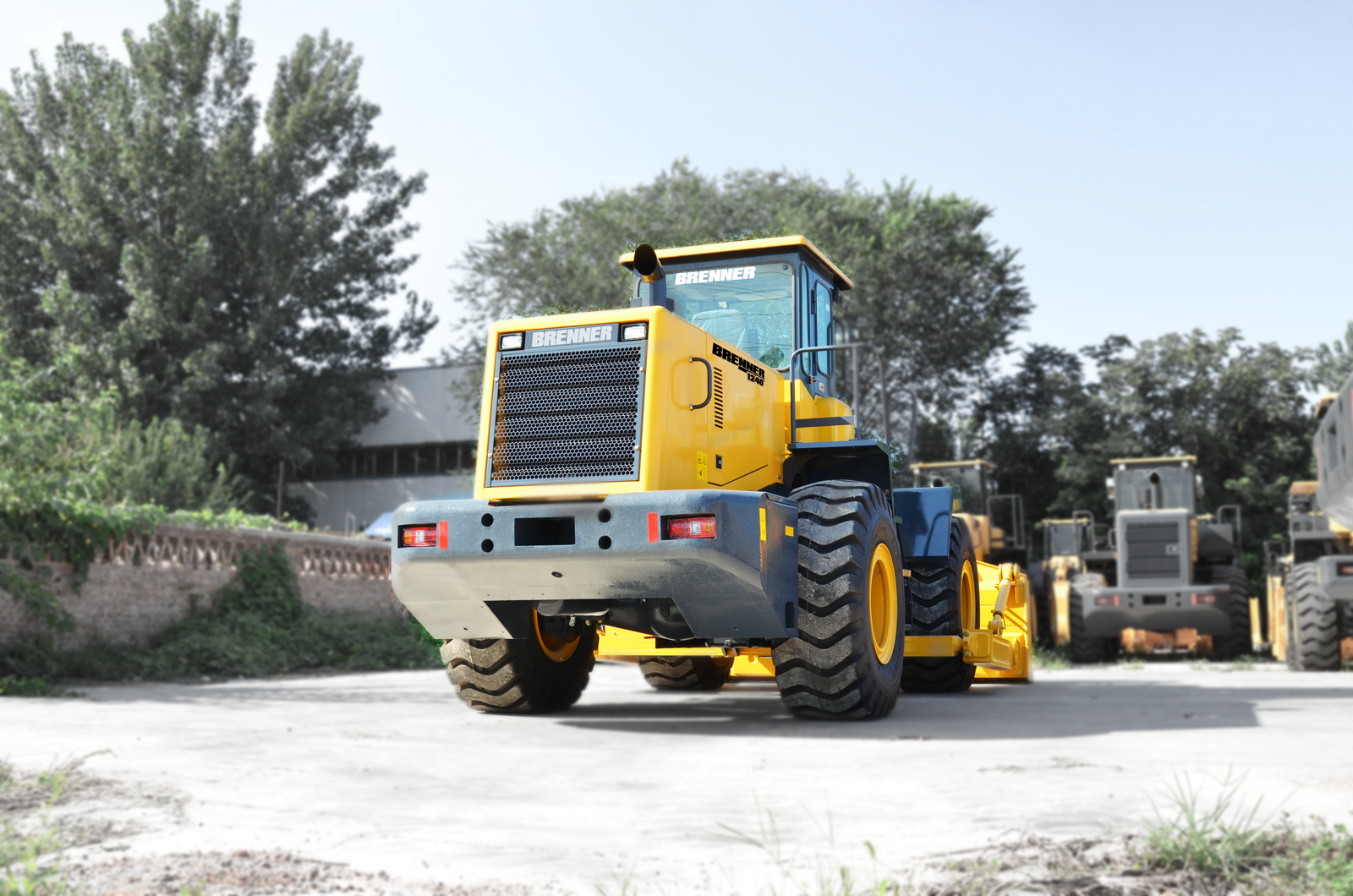

Brenner 1240 Wheel Dozer

Product catalog Earthmoving equipment Wheeled bulldozer Brenner 1240 Wheel Dozer

Brand: BRENNER

Main features:

Dozer Blade Capacity, m³ 3.65

Engine Model WP10G240E341

Gearbox Full-powershift, countershaft type

Overall sizes, mm6870*3500*3410

Characteristics

Blade Characteristics

Dozer Blade Capacity, m³ 3.65

Blade Width, mm 3500

Blade Height, mm 1165

Descent Into the Ground, mm 390

Blade Lifting Height, mm 985

Blade Tilt, mm (Right, Left) 355

Cutoff Angle, ° 55

Maximum Inclination Angle Forward, ° 7.5

Maximum Inclination Angle Backward, ° 7

Maximum Tilt Angle, ° 10

Bulldozer Characteristics

Length, mm 6870

Width, mm 3500

Height, mm 3410 (3560 mm with ROPS&FOPS guard)

Operating Weight, kg 19200

Wheelbase, mm 3300

Track, mm 2250

Gradebility, ° 30

Clearance, mm 310

Minimum Turning Radius, mm 6675

Maximum Tractive Force, kN 160

Working Ambient Temperature, °C -30 ~ +45

Working Altitude Above Sea Level, m 0-4000

Speed (forward / backward) 1st gear, km/h 0-8

Speed (forward / backward) 2nd gear, km/h 0-15

Speed (forward / backward) 3rd gear, km/h 0-25

Speed (forward / backward) 4th gear, km/h 0-40

Engine

Engine Type Diesel, water-cooled, 4-stroke, 6-cylinder in-line, direct injection, turbocharged

Engine Model WP10G240E341

Engine Capacity, L 9.727

Engine Power, kW / HP 178 / 240

Rated Speed, r/min 2200

Minimum Fuel Consumption, g/kW*h 215

Maximum Torque, Nm 908

Transmission

Gearbox Full-powershift, countershaft type

Torque Converter YJ375

Torque Converter Type Single stage three element

Gear Shift Position (Forward / Backward) 4 Forward and 4 Reverse gears

Tire

Tire Size AEOLUS 23.5-25 L-3 20PR career type, reinforced
