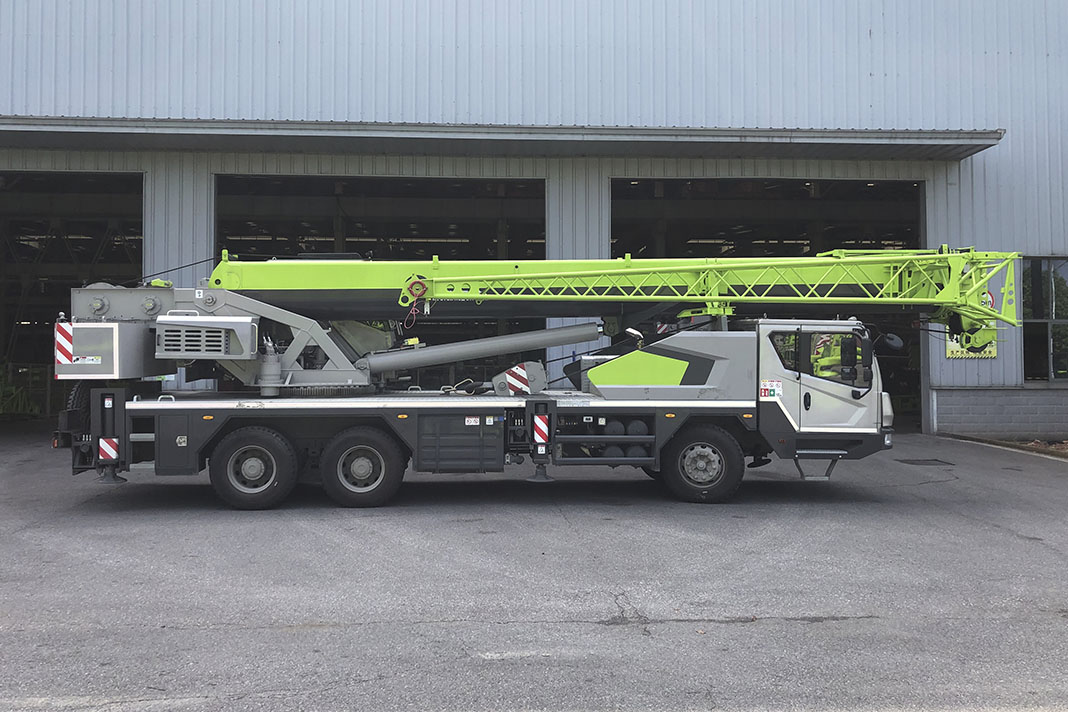

Truck crane Zoomlion ZTC300V

Brand: Zoomlion

Main features:

Load capacity, kg30000

Max. load moment, kN. m1142

Max. load moment of extended boom, kN. m768

Boom Length, m10,7-42

Characteristics

Main technical characteristics

Load capacity, kg30000

Max. load moment, kN. m1142

Max. load moment of extended boom, kN. m768

The maximum lifting height of the main boom, m11,3

Weight in the transport position, kg34500

Front axle load, kg8000

Rear axle load, kg26500

The maximum lifting height is with a jib (jib extension), m42.1 (50)

Operating speeds

Max. speed of the main winch, m/min135

Max. auxiliary winch speed, m/min120

Time of full boom departure, sec35

The time of full extension of the sections of the telescopic boom, sec80

Slewing speed, rpm0-2,7

Driving characteristics

Max. movement speed, km/h90

Max. Gradeability, %45

Min. turning diameter, m21

Min. ground clearance, mm260

Fuel consumption, L/100km29

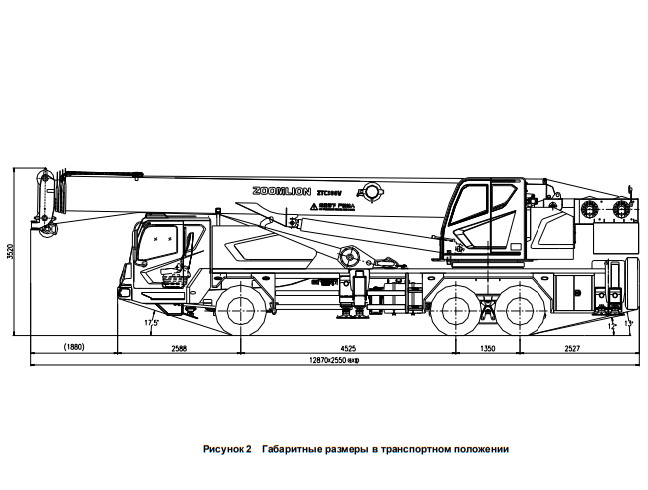

Dimensions

Overall dimensions (l*w*h), mm12870*2550*3520

Outrigger base, m5,39

Turning radius of the tail section, mm3260

Boom length, m10,7-42

The angle of inclination of the boom, °-2-80

Jib length, m8

The angle of installation of the jib, °0, 15, 30
