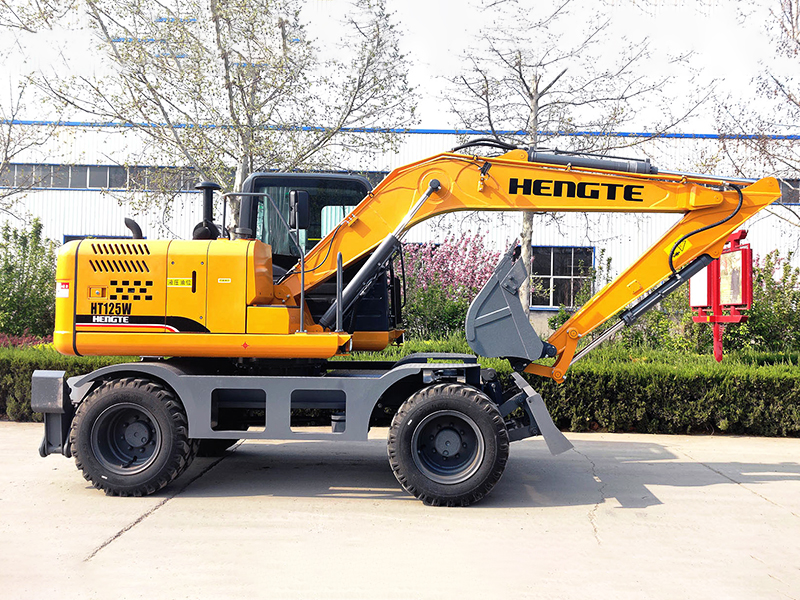

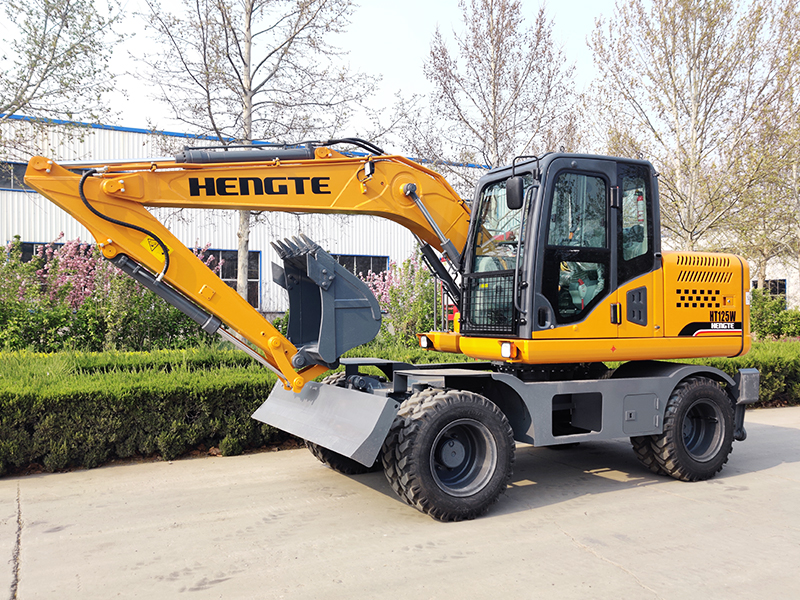

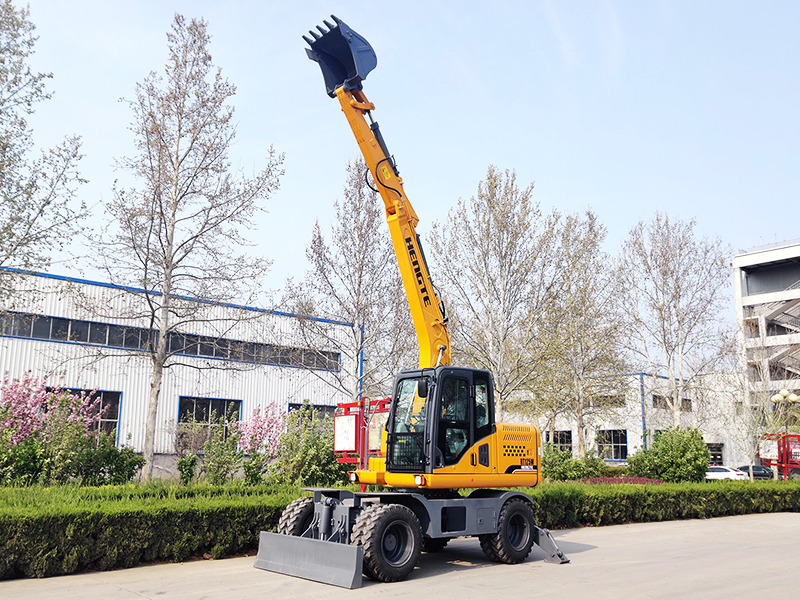

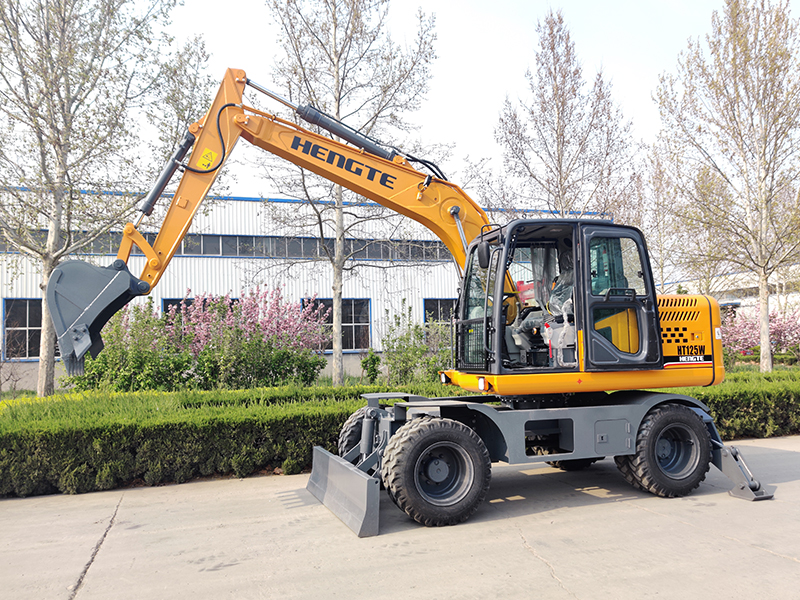

Wheel excavator Hengte HT125W

Brand: Hengte

Main features:

Maximum digging radius, mm7000

Machine weight, kg9880

Engine power, kW/rpm 62.5/2200

Maximum unloading height, mm6180

Characteristics

Main Technical Specifications

Engine model YC4FA85-T300

Maximum digging radius, mm7000

Machine weight, kg9880

Engine power, kW/rpm 62.5/2200

Maximum unloading height, mm6180

Bucket capacity, m³0.4

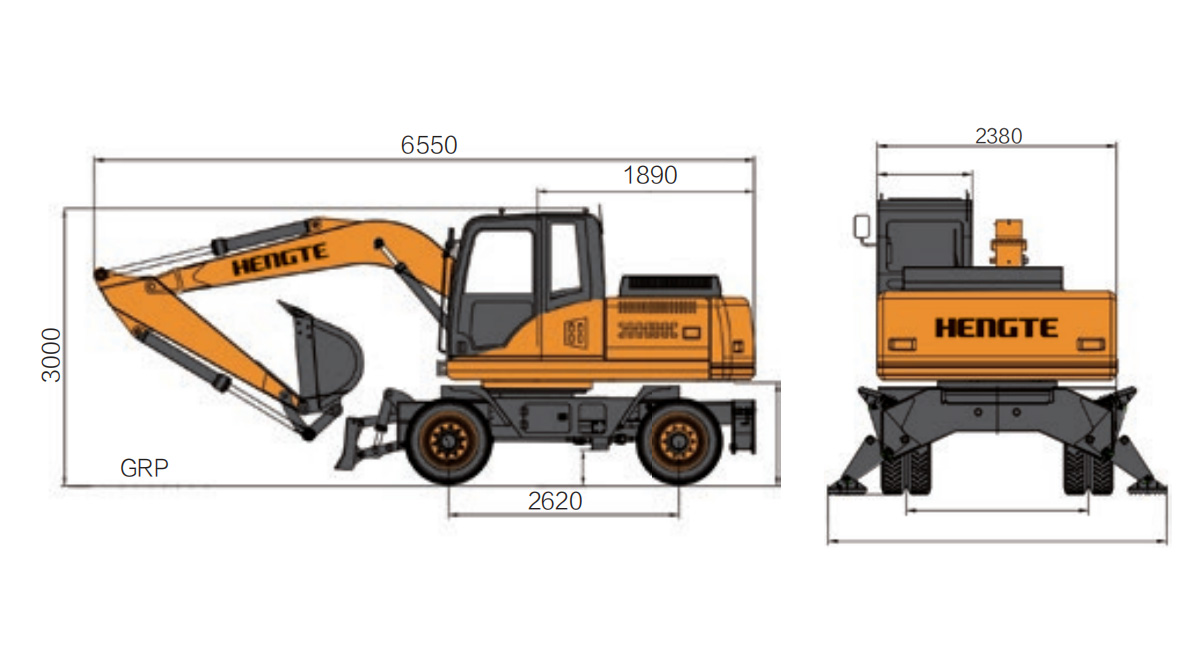

Overall Dimensions

Overall Length, mm 6500

Overall Width, mm 2380

Wheel track, mm1795

Bucket height, mm500

Boom length, mm4000

Bucket Lifting height, mm480

Total height during transportation, mm3000

Tail turning radius, mm1890

Wheelbase, mm2620

Bucket rod length, mm2000

Elevation of the blade relative to the ground, mm60

Working Range

Maximum digging depth, mm3600

Maximum digging height, mm8300

Maximum unloading height, mm6180

Hydraulic system pressure, MPa28

Bucket digging power, kN58

Bucket capacity, m³0.4

Hydraulic fuel tank capacity, L75

Rotation speed, rpm13-14

Hydraulic system flow, L/min180

Bucket rod digging force, kN39.5

Fuel tank capacity, L125

Gradeability, %60

Max. Traveling speed, km/h30
