Hydraulic Scaling Rig Brenner XMPYT-48/460(A)

Brand: Brenner

Main features:

Impact energy, J≥460

Impact frequency, Hz11-20

Articulation angle, °±40

Drill rod diameter, mm45

Characteristics

Main technical characteristics

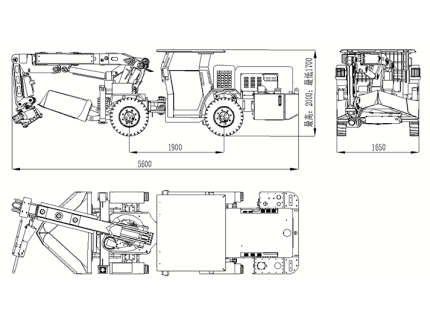

Overall dimensions, mm 5600*1650*1700

Minimum turning radius (inner/outer), mm 1850/3690

Min. ground clearance, mm 250

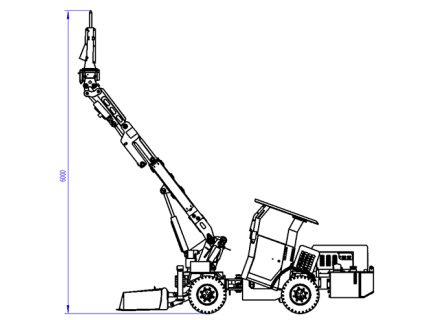

Maximum working height, mm 6000

Articulation angle, ° ±40

Cab Can be raised and lowered, tilted up and down, with a protective net in front

Operating weight, kg 7200

Hydraulic breaker

Impact energy, J ≥460

Impact frequency, Hz 11-20

Drill rod diameter, mm 45

Weight, kg 70

Workflow, L/min 20-40

Work pressure, MPa ≤12

Powertrain

Walking style Wheeled (articulated)

Walking speed, km/h 4-11

Gradeability. ° 25

Diesel engine rated power, kW/rpm 48/2200

Working arm

Work pressure, MPa 14

Set pressure, MPa 15.5

Working arm swing angle (left and right), ° ±60

Optional functions

Remote control system Remote control trolley travel and robotic arm movement

Spray dust suppression Equipped with water tank to reduce dust
