Hydraulic Scaling Rig Brenner XMPYT-96/700

Brand: Brenner

Main features:

Impact energy, J≥700

Impact frequency, Hz7.5-12.5

Articulation angle, °±40

Drill rod diameter, mm68

Characteristics

Main technical characteristics

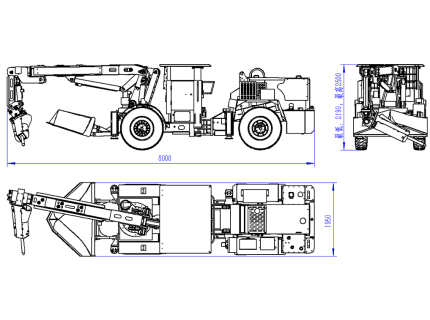

Overall dimensions, mm8000*1950*2190

Minimum turning radius (inner/outer), mm3350/5300

Min. ground clearance, mm300

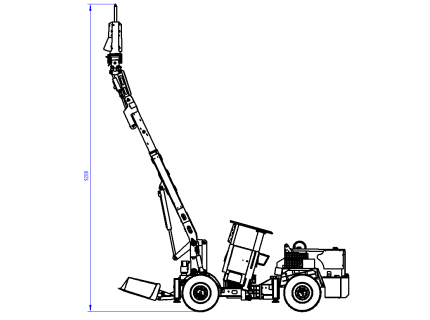

Maximum working height, mm9200

Articulation angle, °±40

CabCan be raised and lowered, tilted up and down, with a protective net in front

Operating weight, kg11800

Hydraulic breaker

Impact energy, J≥700

Impact frequency, Hz7.5-12.5

Drill rod diameter, mm68

Weight, kg165

Workflow, L/min40-70

Work pressure, MPa≤14

Powertrain

Walking styleWheeled (articulated)

Walking speed, km/h9-20

Gradeability. °25

Diesel engine rated power, kW/rpm96/2500

Working arm

Work pressure, MPa16

Set pressure, MPa17.5

Working arm swing angle (left and right), °±60

Optional functions

Remote control systemRemote control trolley travel and robotic arm movement

Spray dust suppressionEquipped with water tank to reduce dust
