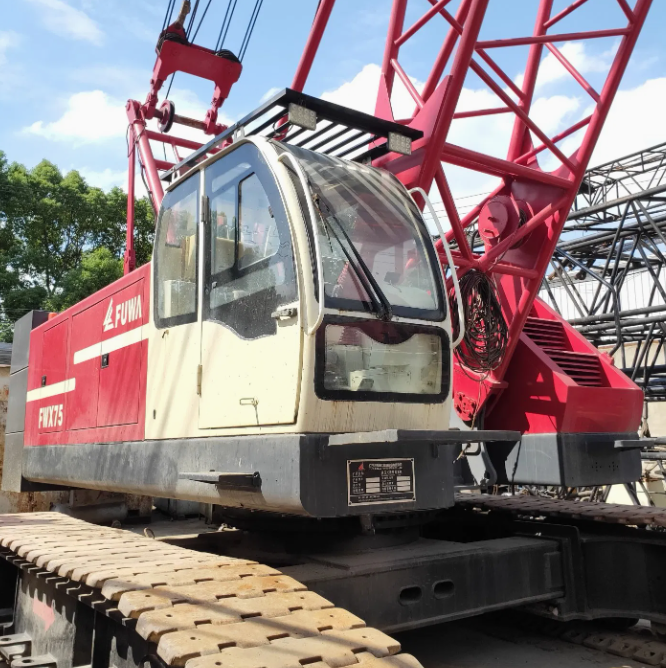

Lifting crane crawler FUWA FWX75

breadcrab

Product catalog Lifting Equipment Crawler crane Lifting crane crawler FUWA FWX75

Brand: Fuwa

Main features:

Max. Rated Lifting Capacity, kg75000@3.55m

Main Boom Length, m13-58

Crane Mass, kg66000

Single Line Pull, kg7000

Characteristics

Main technical characteristics

Max. Rated Lifting Capacity, kg 75000@3.55m

Boom derricking angle, ° 30-80

Hook Blocks, kg 75000/25000/9000

Single Line Pull, kg 7000

Gradeability, ° 30

Crane Mass, kg 66000

Ground Bearing Pressure, Mpa 0.079

Counterweight, kg 24000

Reevings 11

Dimensions

Main Boom Length, m 13-58

Fly Jib Length, m 9-18

Main Boom + Fly Jib Max. Length, m 46+18

Vehicle length, m 12.99

Vehicle width, m 3.26

Vehicle height, m 3.25

Swing Radius, mm 4356

Working Speed

Rope speed (Main Winch Hoist), m/min 110

Rope speed (Aux. Winch Hoist), m/min 110

Rope speed (Boom Hoist), m/min 60

Swing Speed, r/min 3.1

Travel Speed, km/h 1.33

Engine

BrandWeichai

ModelWP10.240

TypeDiesel engine

Rated power, kW/rpm 175/2000
