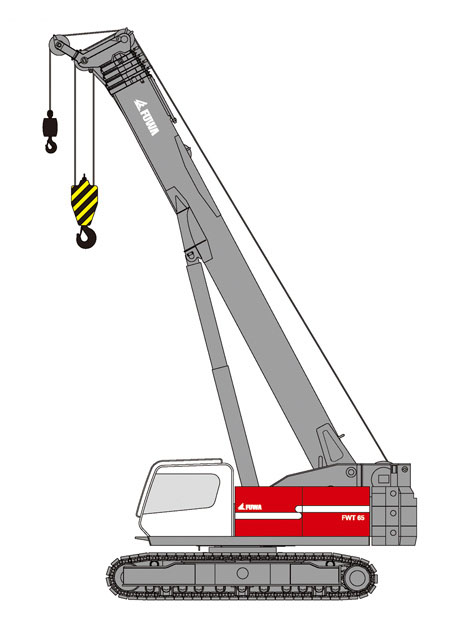

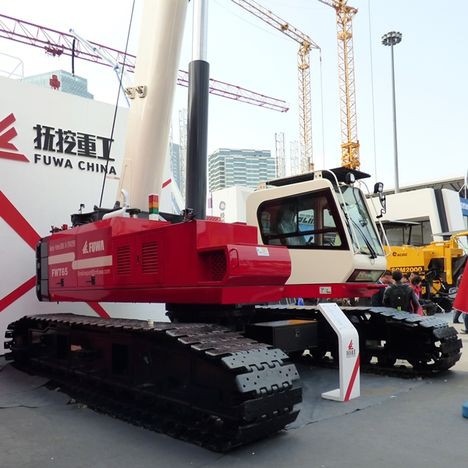

Telescopic lifting crane FUWA FWT65

Brand: Fuwa

Main features:

Max. Rated Lifting Capacity, kg65000

Boom derricking angle, °-3~83

Single Line Pull, kg7500

Main Boom Length, m10.8~38

Characteristics

Main technical characteristics

Max. Rated Lifting Capacity, kg 65000

Boom derricking angle, ° -3~83

Single Line Pull, kg 7500

Gradeability, ° 30

Crane Mass, kg 60000

Ground Bearing Pressure, Mpa 0.07

Dimensions

Main Boom Length, m 10.8~38

Fly Jib Length, m 8/14

The angle between the jib and the main boom, ° 0/20/40

Rope diameter, mm 22

Main/aux.winch rope length 200/130

Vehicle length, m 12.5

Vehicle width, m 3.26

Vehicle height, m 3.16

Working Speed

Rope speed, m/min 0~116

Swing speed, r/min 0~1.96

Travel speed, km/h 0~2.26
