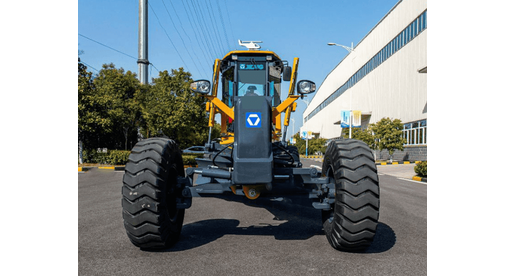

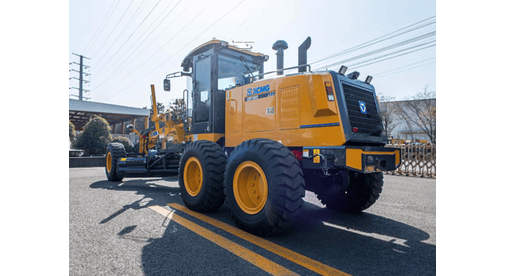

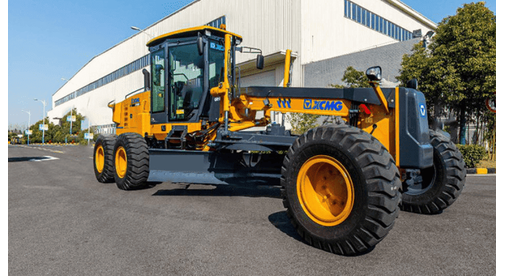

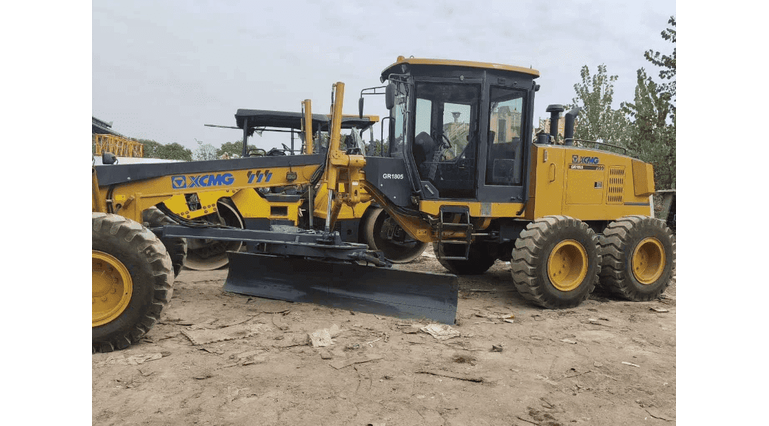

Motor grader GR1705T

Brand: XCMG

Main features:

Length of Blade, mm3660

Operating Weight, kg15000

Rated Power, kW131

Overall dimension, mm9230*2625*3470

Characteristics

Operating device specification

Operating Weight, kg 15000

Length of Blade, mm 3660

Height of blade, mm 610

Tilt angle, ° 90

Blade tip range, ° Front 40; Rear 5

Max. capacity of hydraulic oil tank, L 120

Max. capacity of fuel tank, L 300

Running specification

Gears6 Forward and 3 Reverse

Forward speed, km/h 5/8/13/18/30/47

Reverse speed, km/h 5/13/30

Steering angle of front wheel, ° 48

Tilt angle of front wheel, ° 18

Articulated steering angle, ° 16

Oscillation angle of front axle, ° 15

Tires size 17,5-25

Dimensions

Standard (without counterweight), mm 9230*2625*3470

Front and rear axle base, mm 6489

Middle and rear wheel base, mm 1568

Clearance (from rear axle to ground), mm 610

Engine

Brand Weichai

EmissionEuro III

Model WP8G178E671

Rated power, kW 131

Rated rotation speed, rpm 2200
