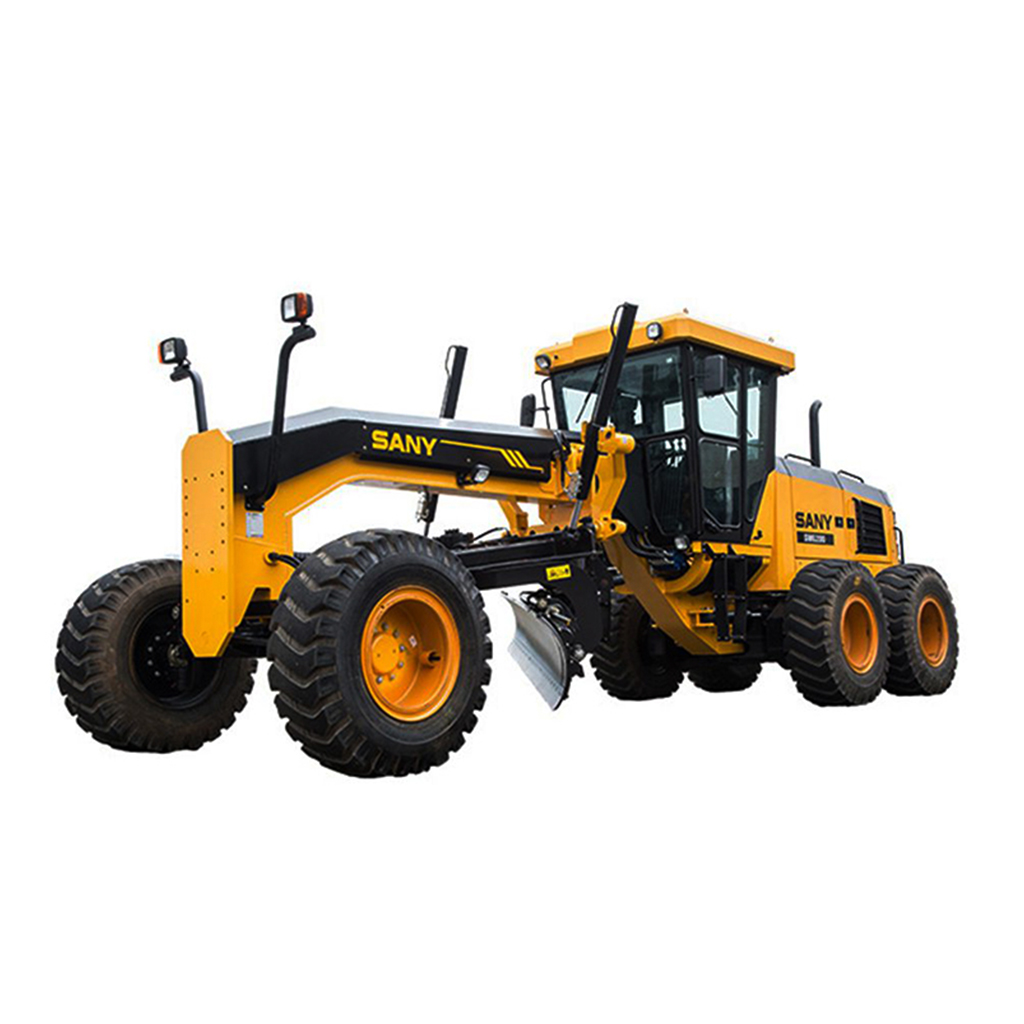

Motor Grader STG210C-8S

breadcrab

Product catalog Road construction machinery Motor grader Motor Grader STG210C-8S

Brand: SANY

Main features:

Length of Blade, mm3660

Operating Weight, kg16200

Rated Power, kW154

Overall dimension, mm9340*2740*3348

Characteristics

Operating device specification

Operating Weight, kg 16200

Length of Blade, mm 3660

Height of blade, mm 620

Tilt angle, ° 90

Turning angle, ° 360

Max. lift above ground, mm 480

Max. depth of cut, mm 630

Blade tip range, ° 25-75

Max. capacity of hydraulic oil tank, L 140

Max. capacity of fuel tank, L 350

Running specification

Gears6 Forward and 3 Reverse

Forward speed, km/h 6/10/13/21/27/42

Reverse speed, km/h 6/13/27

Steering angle of front wheel, ° 45

Tilt angle of front wheel, ° 17

Articulated steering angle, ° 27

Oscillation angle of front axle, ° 16

Tires size 17.5-25 (12PR)

Dimensions

Standard (without counterweight), mm 9340*2740*3348

Front and rear axle base, mm 6310

Middle and rear wheel base, mm 1538

Clearance (from rear axle to ground), mm 410

Engine

BrandWeichai

Emission Euro III

Model WP6G210E330

Rated power, kW 154

Rated rotation speed, rpm 2200

Peak torque, Nm 900
